Swing Keel Zinc Coating


Back to Keel Maintenance Home

My plan was to use a zinc rich coating (a.k.a. cold galvanizing compound) on the keel as a base coat and rust inhibitor. I used a product from ZRC Worldwide. It is an industrial coating and has about 95% zinc in the dry film. It costs about $30 per quart.

It took seemingly an eternity to sand and grind the keel down to bare metal. I took the keel out of the boat in November 2001. I worked on the keel periodically during the winter months and was ready to apply the zinc coating in May 2002. Prior to applying the ZRC, I gave the keel one last cleaning with Naval Jelly, which is a popular rust removal product. I moved the keel outside the garage to apply the Zinc coating.

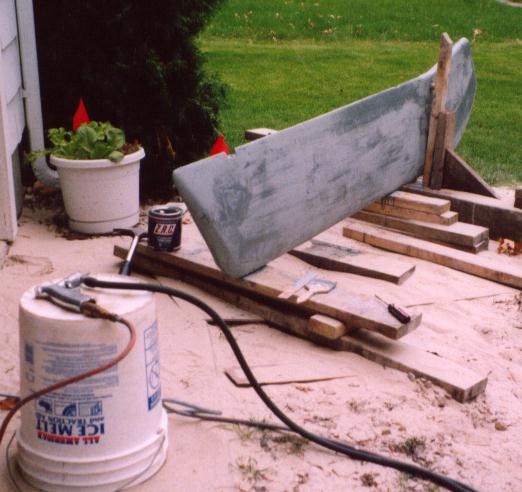

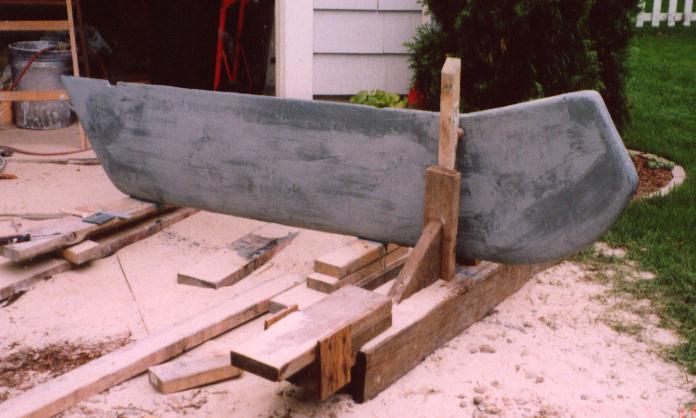

Keel in wooden brace Zinc Rich Compund (ZRC) applied and drying

Once two coats of ZRC had been applied and allowed to dry for a couple of days, it was time to begin the epoxy and fiberglass operation. (on to next page)
