Blue/Red - Combination Jib Halyard and Downhaul in a continous loop.
Yellow - Main Halyard
Green - Boom Top Lift to hold the boom up even when the main is down.
Purple - Lazy Jack (or similar) to capture the main while lowered.
Back to Completed Projects Home
Single-Handed Rigging System Design
|

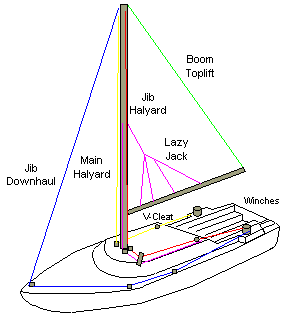

Lines: Blue/Red - Combination Jib Halyard and Downhaul in a continous loop. Yellow - Main Halyard Green - Boom Top Lift to hold the boom up even when the main is down. Purple - Lazy Jack (or similar) to capture the main while lowered. |
Design Challenges:
There is very little space on the
cabin top of my Catalina 22 (because of the pop-top). There
is barely enough room to feed a single line between the pop-top
and the hand rail; and certainly no space to fit a winch on the
cabin top, either (see picture). I do not think it is a
good idea to affix any of the rigging hardware on the pop-top
(great inconvenience when you pop the top).
I have noticed some Catalina 22's where a winch was mounted to the cabin top by reducing the handrail by 1 loop (from 5 loops down to 4 loops). I would rather not cut down the hand rails, so I will set the system up to feed the lines to the rear winches (we will see how it goes).
The Single-Handed rigging 'system' includes the following
components (links below). The blocks and associated hardware are
mostly Harken, with a Ronstan here and there. Total cost was
about $500.
Mast Plate, Cheek Blocks, Aft Cleats, Jib Downhaul, Lazy Jack and Tiller Tamer.
I completed the single-handed rigging design just before the 1999 season got underway. I can now sail the boat single-handed, from the cockpit. The links above are some pictures of the single-handed set-up.
